Jack A5E THIS MODEL HAS NOW BEEN REPLACED WITH THE AMH MODEL
Jack A5E THIS MODEL HAS NOW BEEN REPLACED WITH THE AMH MODEL
JACK A5E LARGE SPACE COMPUTERISED LOCKSTICH WITH ELECTRONIC CONTROL STITCH LENGTH
NOW IN STOCK ON SHOW
Free delivery in the midlands ( Please only order online if in the midlands )
FREE DELIVERY IN THE WEST MIDLANDS OR COLLECT IN STORE
PLEASE CONTACT US FOR DELIVERY OUTSIDE OF THIS AREA
Jack A5E
Large Space Computerized Lockstitch Machine

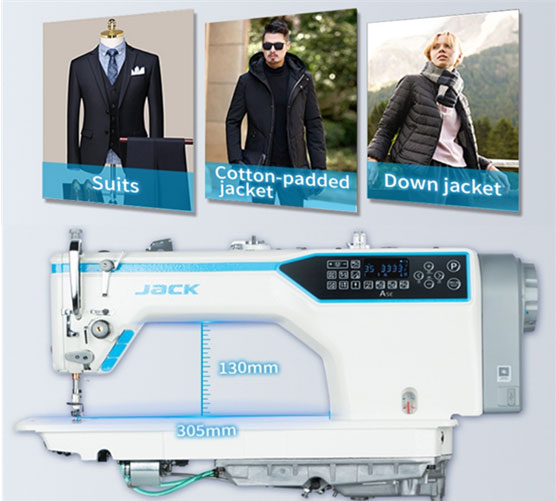

MORE SPACE (305 mm X 130 mm).
Big operation space, feeding easily, even down jacket, cotton-padded jacket and small template program can be sewn smoothly.
Variable Stitches, Fashionable And Beautiful.
Different sewing stitch is available based on different clothes requirements. And editable pattern enables more fashionable and beautiful stitches.
No Oil No Trouble, Clean And Durable.
Sealed oil pan, avoid dust entering, perfect lubrication, clean and durable.
Beautiful Stitches, Short Remaining Thread.
End sewing remaining thread is within 3.5 mm, and the automatic condense stitch function can avoid loosing stitches.
High precision stitcH.
Stitch length can reach 0.1mm controlled by stepping motor and can also be locked to avoid errors caused by mis-operation..
Technical Specification
| Model | Jack A5E |
|---|---|
| Needle | DBx1 11-18# |
| Thread Number | 2 |
| Max. Stitch Length | 5 mm |
| Presser Foot Lifter Height | 5 - 13 mm |
| Max. Speed | 5000 s.p.m |
| Thin / Medium Thick Material | YES |
| Thick Material | - |
| Volume | 690 x 295 x 550 mm |
| Part No | JACKA5E |
|---|---|
| Weight (KG) | 74.000000 |
 Jack A5E - Leaflet (4 MB) |
Download |
